Maintenance and Calibration

We calibrate your station onsite to prevent long downtimes.

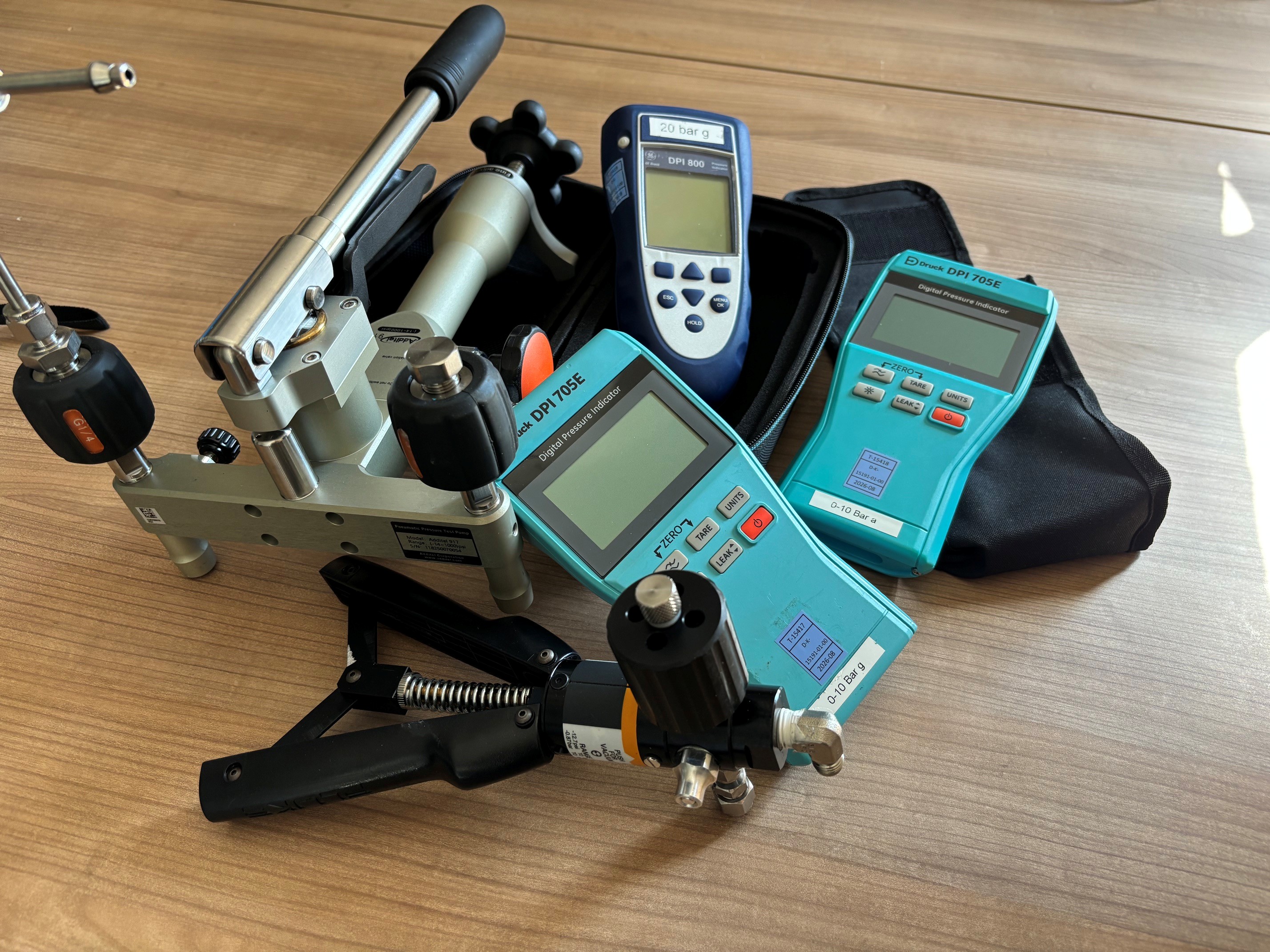

Pressure sensors

up to 70barg

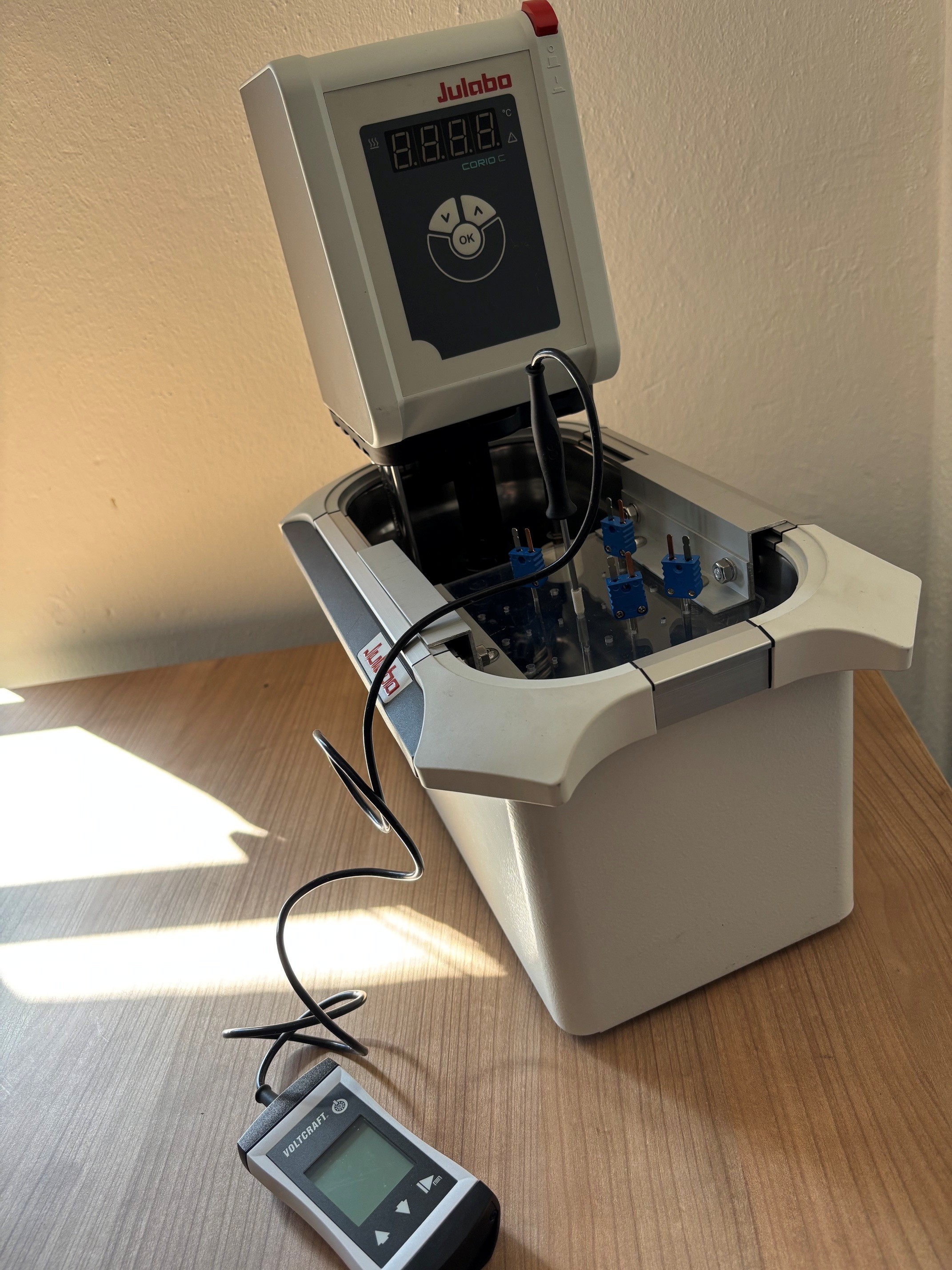

Temperature sensors

Calibration of thermocouples up to 100°C

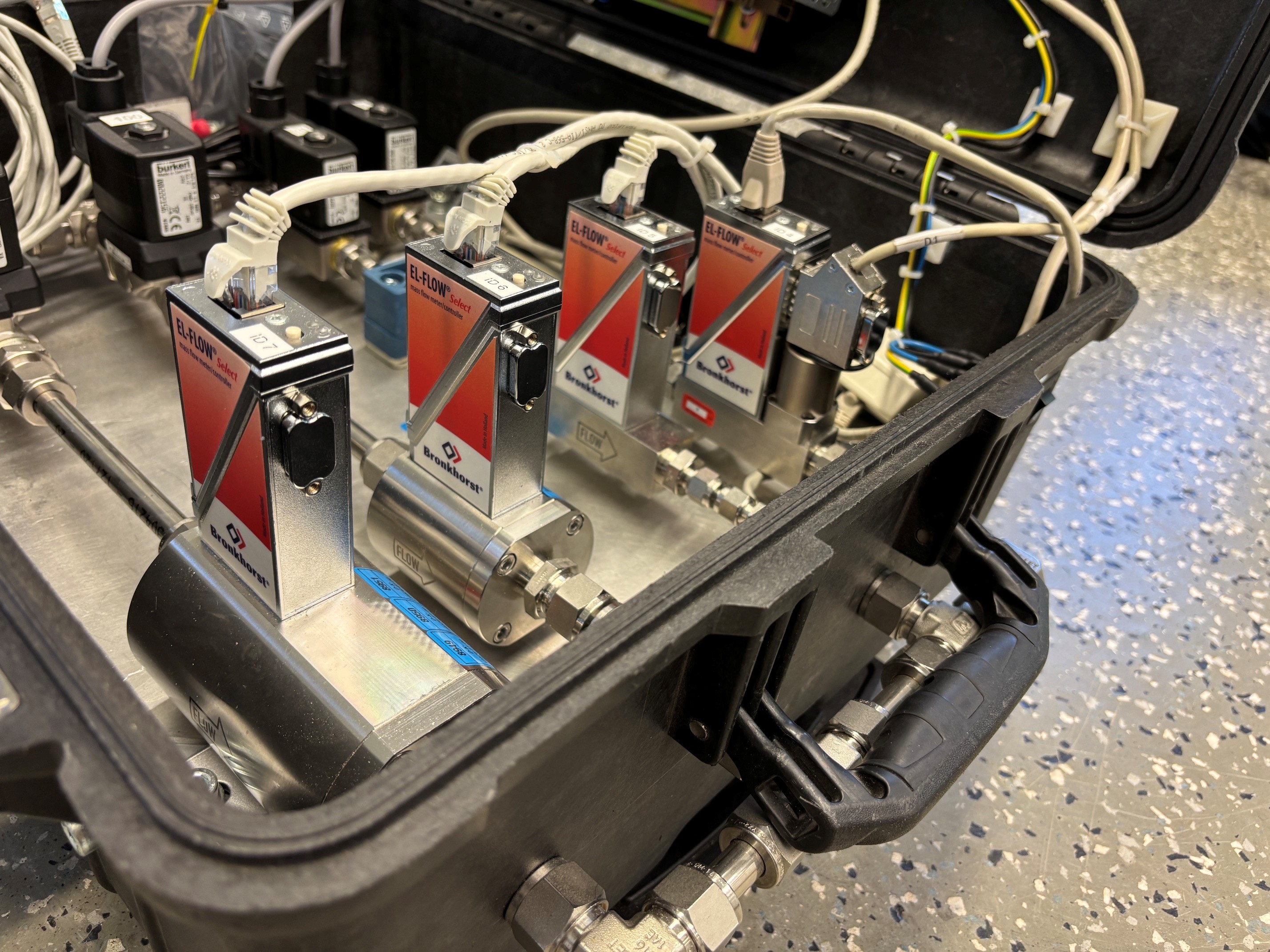

Massflow

MFM and MFC calibration from 20Nml/min up to 8000Nl/min



MFCs will be calibrated in their installed position. MFCs will be calibrated with customer gas infrastructure, including its limitations. Available for H2, N2, O2, Air and CO2 (O2 and CO2 with Bronkhorst correction factors). With TIRRON calibration certificates.

Does not include repair of MFCs, which cannot be calibrated. (MFC can not be calibrated within our tolerances)

TIRRON Reference is calibrated at ISO 17025 certified laboratory with 1 year calibration interval. With 5 calibration points: 0, 20, 40, 60, 80 and 100% FS.

Tolerance and Uncertainty:
20nmlpm - 1000 nlpm:

-Tolerance: 1 % Measurement + 0.2 % Full Scale of DUT

-Uncertainty: 0.5 % Measurement + 0.1% Full Scale of used References

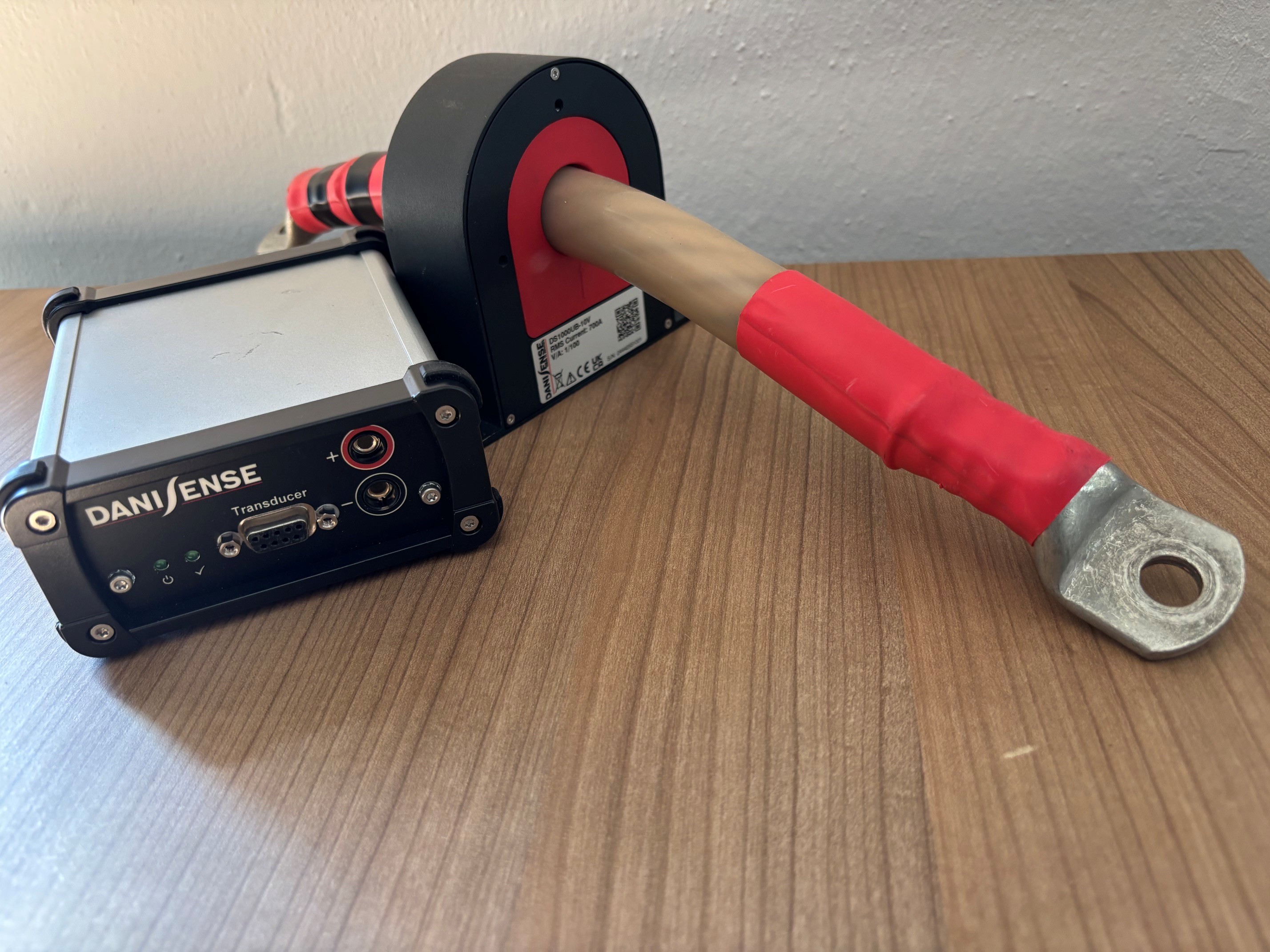

Current and Voltages

Load and Powersupply calibration up to 1000A



Resistivity

Resistivity validation



Service and Maintanance

To keep your station safe and reliable

  • safety matrix check
  • leak check
  • pump maintenance
  • filter maintenance

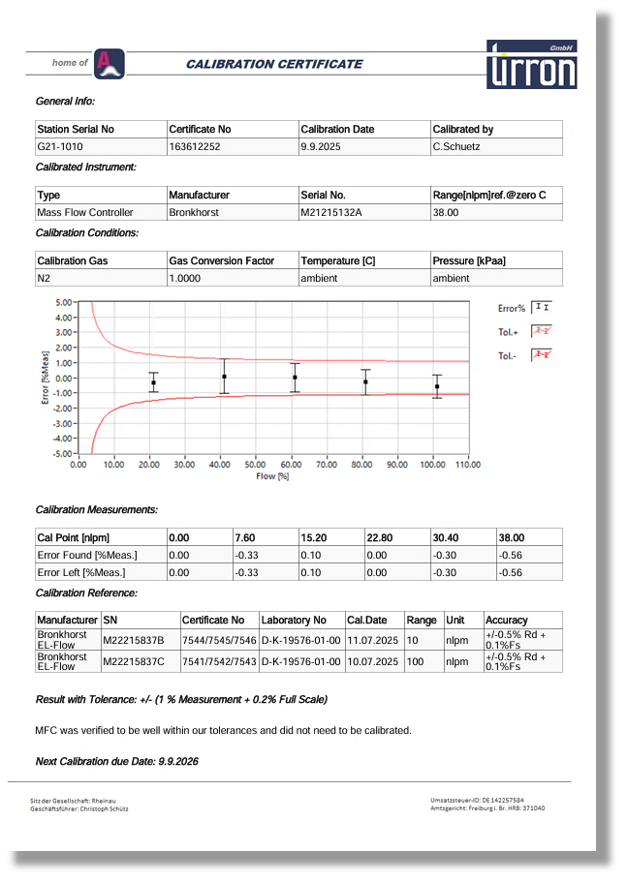

Certificates

We create calibration certificates for all calibrates devices.
